Description

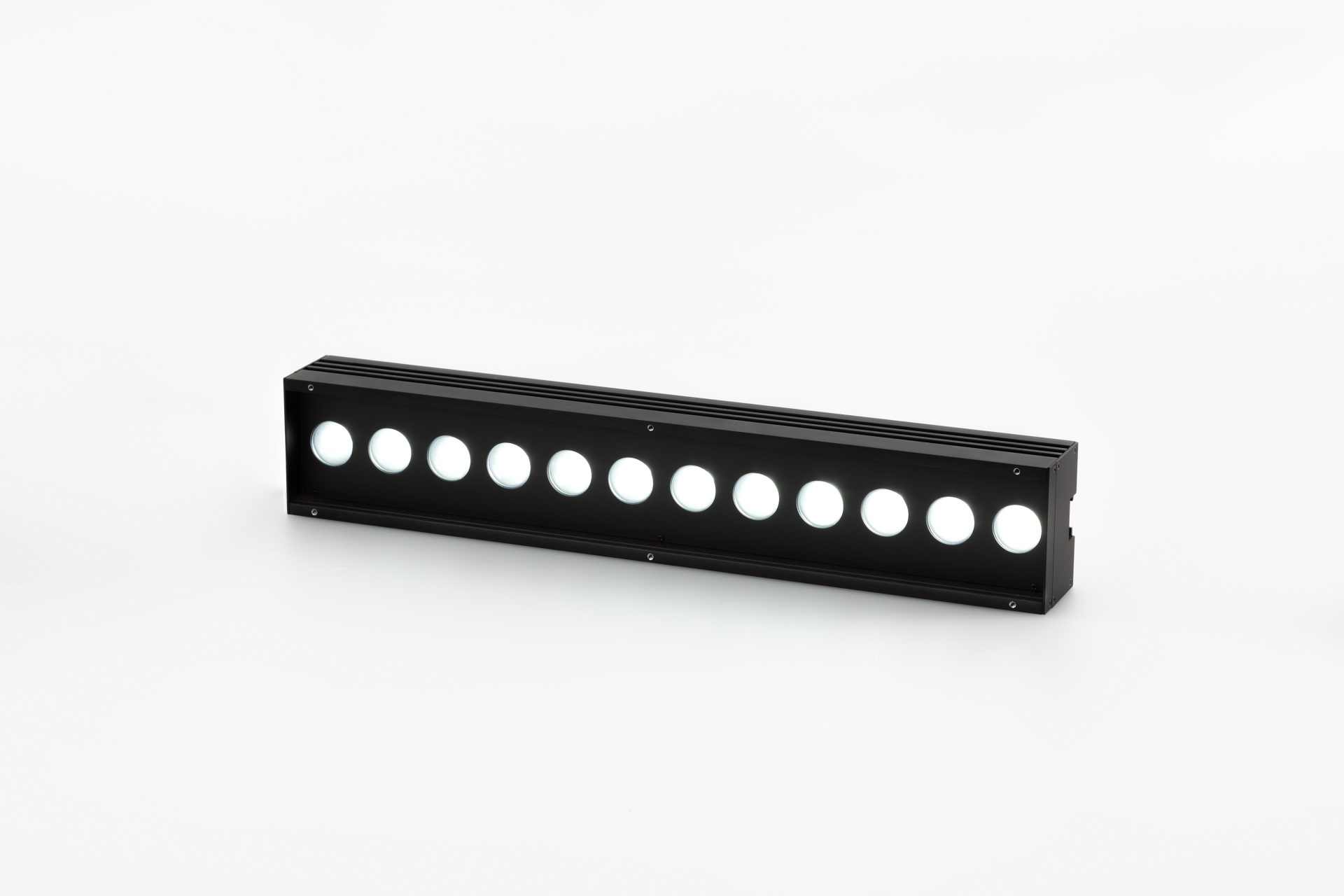

- Bar lighting
- High-brightness and long-distance irradiation type with built-in lens.
- Optional: Diffusion plate, polarizing plate.
- *The input voltage is 24.0V.
VBAL-60030W
- Bar lighting
- High-brightness and long-distance irradiation type with built-in lens.
- Optional: Diffusion plate, polarizing plate.
- *The input voltage is 24.0V.
Additional information
| Case_material | Aluminium alloy |
|---|---|
| Color | white |
| Color_temperature | 6500K |
| Connector_assignment | SMR-03V-B (JST) / 1pin: V+ , 2pin: NC , 3pin: V- |
| Cooling_method | Natural Air-Cooling |
| Current_consumption | 1.42 A |
| Environmental_declaration | RoHS Compliant |
| Height | 36 mm |
| Model | VBAL-60030W |
| Operating_environment | Temp 0 to 40 °C / Humidity 20 ~ 85% (with no condensation) |
| Operating_voltage | DC 24 V |
| Power_consumption | 40.0 W |
| Series | VBAL Series |
| Storage_environment | Temp -20 to 60 °C / Humidity 20 ~ 85% (with no condensation) |
