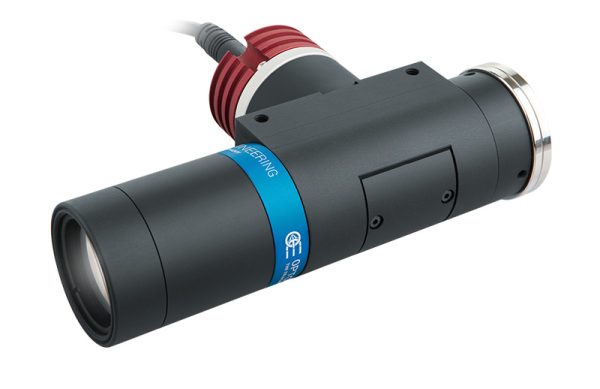

TCCX050-W

TCCX050-W

Specification Value
Magnification 0.500 (x)
Image circle diameter 11.0 (mm)
Max sensor size 2/3″
1/3″ 9.60 x 7.20 (mm x mm)
1/2.5″ 11.40 x 8.56 (mm x mm)
1/2″ 12.80 x 9.60 (mm x mm)
1/1.8″ 14.26 x 10.66 (mm x mm)
2/3″ 17.00 x 14.18 (mm x mm)
Working distance 132.3 (mm)
Working f/N 12
Telecentricity typical (max) < 0.04 (0.06) (deg)
Distortion typical (max) < 0.1 (0.2) (%)
Depth of field 2.50 (mm)
Resolution 15 (μm)
Light color, peak wavelength white, 6000 K
Spectral FWHM – (nm)
Supply voltage 12-24 (V)
Max power consumption 2.5 (W)
LED voltage 2.8 (-) (V)
LED current 350 (mA)
Max pulse current 2000 (mA)
Connector M8
Cables CB244P1500 included
Mount C
Phase adjustment Yes
Length 131.2 (mm)
Front diameter 37.7 (mm)
Mass 450 (g)
Operating temperature 0-40 (°C)
Storage temperature 0-50 (°C)
Operating relative humidity 20-85, non condensing (%)
Installation Indoor use only
Risk group according to CEI EN 62471:2010 Risk group 2
Add to Quote
Category: Tag: Brand:

Description

  1. Working distance: distance between the front end of the mechanics and the object. Set this distance within ± 3% of the nominal value for maximum resolution and minimum distortion.
  2. Working f-number (wf/N): the real f-number of a lens in operating conditions.
  3. Maximum angle between chief rays and optical axis on the object side. Typical (average production) values and maximum (guaranteed) values are listed.
  4. Percent deviation of the real image compared to an ideal, undistorted image. Typical (average production) values and maximum (guaranteed) values are listed.
  5. At the limits of the depth of field, the image can still be used for measurements. For a very sharp image, however, only half of the depth of field should be applied. Pixel size used for calculation is 3.45 μm.
  6. Object side, calculated with the Rayleigh criterion with λ= 520 nm
  7. At max forward current. Tolerance is ± 0.06V on forward voltage measurements.
  8. Used in continuous (non-pulsed) mode.
  9. At pulse width <= 10 ms, duty cycle <= 10% condition. Built-in electronics board must be bypassed (see tech info).
  10. Measured from the front end of the mechanics to the camera flange.

Additional information

Lens mount

C
Length

131.2 (mm)
Accessory developer

Opto
Cables

CB244P1500 included
Zoom ratio

0.500 (x)
Working distance

132.3 (mm)
Working f/N

12
Telecentricity typical (max)

< 0.04 (0.06) (deg)
Distortion typical (max)

< 0.1 (0.2) (%)
Depth of field

2.50 (mm)
Phase adjustment

Yes
Mass

450 (g)
Image circle diameter

11.0 (mm)
Resolution

15 (μm)
Connector

M8
Front diameter

37.7 (mm)
Supply voltage

12-24 (V)
Operating temperature

0-40 (°C)
Storage temperature

0-50 (°C)
Installation

Indoor use only
Light color, peak wavelength

white, 6000 K
Max power consumption

2.5 (W)
Led voltage

2.8 (-) (V)
Led current

350 (mA)
Max pulse current

2000 (mA)
Operating relative humidity

20-85, non condensing (%)
Risk group (cei 62471)

Risk group 2
Optmag

0.500 (x)
Sensor size
