Description
- Indicates the dimensions and shape of image, where “Ø =” stands for diameter and “x=” indicates the nominal image height and width (Tech Info for related drawing).
- Object field of view (mm x mm). For the fields with the indication “Ø =”, the image of a circular object of such diameter is fully inscribed into the sensor.
- Working distance: distance between the front end of the mechanics and the object. Set this distance within ±3% of the nominal value for maximum resolution and minimum distortion.
- Working f-number (wf/N): the real f-number of a lens in operating conditions.
- Maximum angle between chief rays and optical axis on the object side. Typical (average production) values and maximum (guaranteed) values are listed.
- Percent deviation of the real image compared to an ideal, undistorted image. Typical (average production) values and maximum (guaranteed) values are listed.
- At the limits of the depth of field, the image can still be used for measurements. For a very sharp image, however, only half of the depth of field should be considered. Pixel size used for calculation is 3.45 μm.
- Object side, calculated with the Rayleigh criterion with λ= 520 nm
- Indicates the availability of an integrated camera phase adjustment feature.

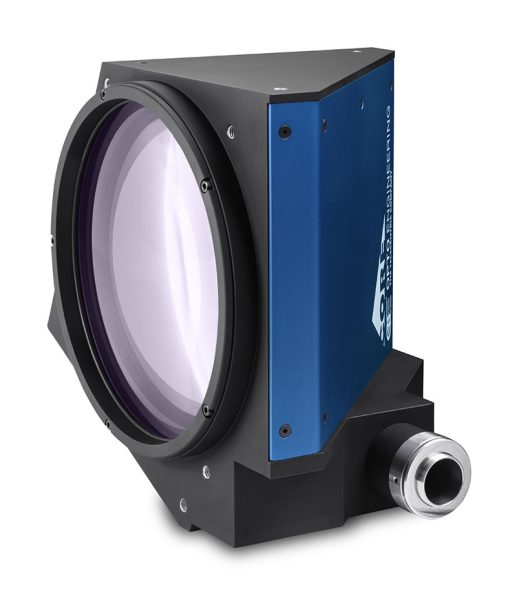

- Due to the special shape of TCCR120xx it might be necessary to check the mechanical compatibility with your camera
