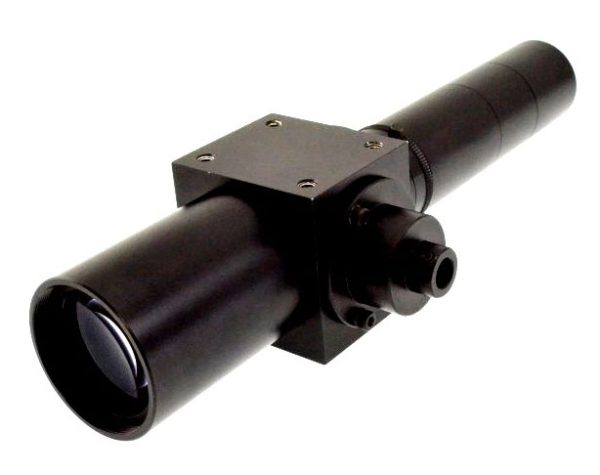

RT-TCL0600-FU

RT-TCL0600-FU

Specification Value
Magnification 0.600 (x)
Image circle diameter 16.0 (mm)
Max sensor size 1″
1/2.5″ 9.50 x 7.13 (mm x mm)
1/1.8″ 11.88 x 8.88 (mm x mm)
2/3″ 14.17 x 11.82 (mm x mm)
1″ 23.65 x 12.52 (mm x mm)
1.1″ 23.60 x 17.28 (mm x mm)
Working distance 78.5 (mm)
Working f/N 12-60
Distortion < 0.04 (%)
Depth of field 1.20 (mm)
Resolution 13.4 (μm)
Mount C
Phase adjustment No
Length 228.5 (mm)
Front diameter 44.0 (mm)
Mass 428 (g)
Add to Quote
Category: Tag: Brand:

Description

  1. Working distance: distance between the front end of the mechanics and the object. Set this distance within ±3% of the nominal value for maximum resolution and minimum distortion.
  2. Working f-number (wf/N): the real f-number of a lens in operating conditions.
  3. Measured from the front end of the mechanics to the camera flange.

Additional information

Lens mount

C
Resolution

13.4 (μm)
Color
Accessory developer

Opto
Distortion

< 0.04 (%)
Front diameter

44.0 (mm)
Length

228.5 (mm)
Image circle diameter

16.0 (mm)
1 1

23.60 x 17.28 (mm x mm)
Mass

428 (g)
Phase adjustment

No
Depth of field

1.20 (mm)
Working f/N

12-60
Working distance

78.5 (mm)
Zoom ratio

0.600 (x)
Operation power source
Optmag

0.600 (x)
Sensor size
