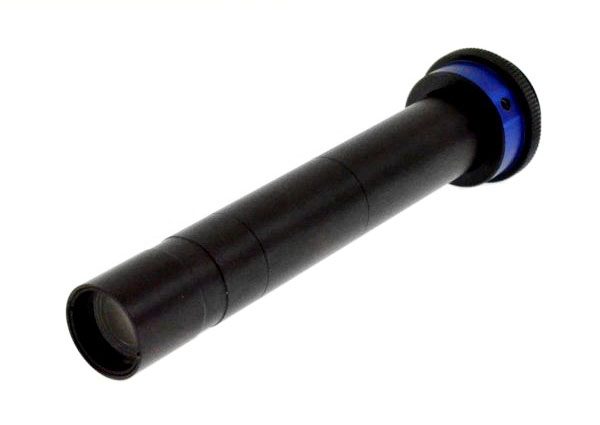

RT-HR-1M-71

RT-HR-1M-71

Specification Value
Magnification 1.000 (x)
Image circle diameter 11.0 (mm)
Max sensor size 2/3″
1/3″ 4.80 x 3.60 (mm x mm)
1/2.5″ 5.70 x 4.28 (mm x mm)
1/2″ 6.40 x 4.80 (mm x mm)
1/1.8″ 7.13 x 5.33 (mm x mm)
2/3″ 8.50 x 7.09 (mm x mm)
Working distance 71.0 (mm)
Working f/N 15.6
Distortion < 0.01 (%)
Depth of field 0.90 (mm)
Resolution 10.5 (μm)
Mount C
Phase adjustment Yes
Length 116.1 (mm)
Front diameter 18.0 (mm)
Mass 65 (g)
Add to Quote
Category: Tag: Brand:

Description

  1. Working distance: distance between the front end of the mechanics and the object. Set this distance within ±3% of the nominal value for maximum resolution and minimum distortion.
  2. Working f-number (wf/N): the real f-number of a lens in operating conditions.
  3. Measured from the front end of the mechanics to the camera flange.

Additional information

Lens mount

C
Length

116.1 (mm)
Operation power source
Color
Accessory developer

Opto
Distortion

< 0.01 (%)
Front diameter

18.0 (mm)
Image circle diameter

11.0 (mm)
Resolution

10.5 (μm)
Mass

65 (g)
Phase adjustment

Yes
Depth of field

0.90 (mm)
Working f/N

15.6
Working distance

71.0 (mm)
Zoom ratio

1.000 (x)
Optmag

1.000 (x)
Sensor size
