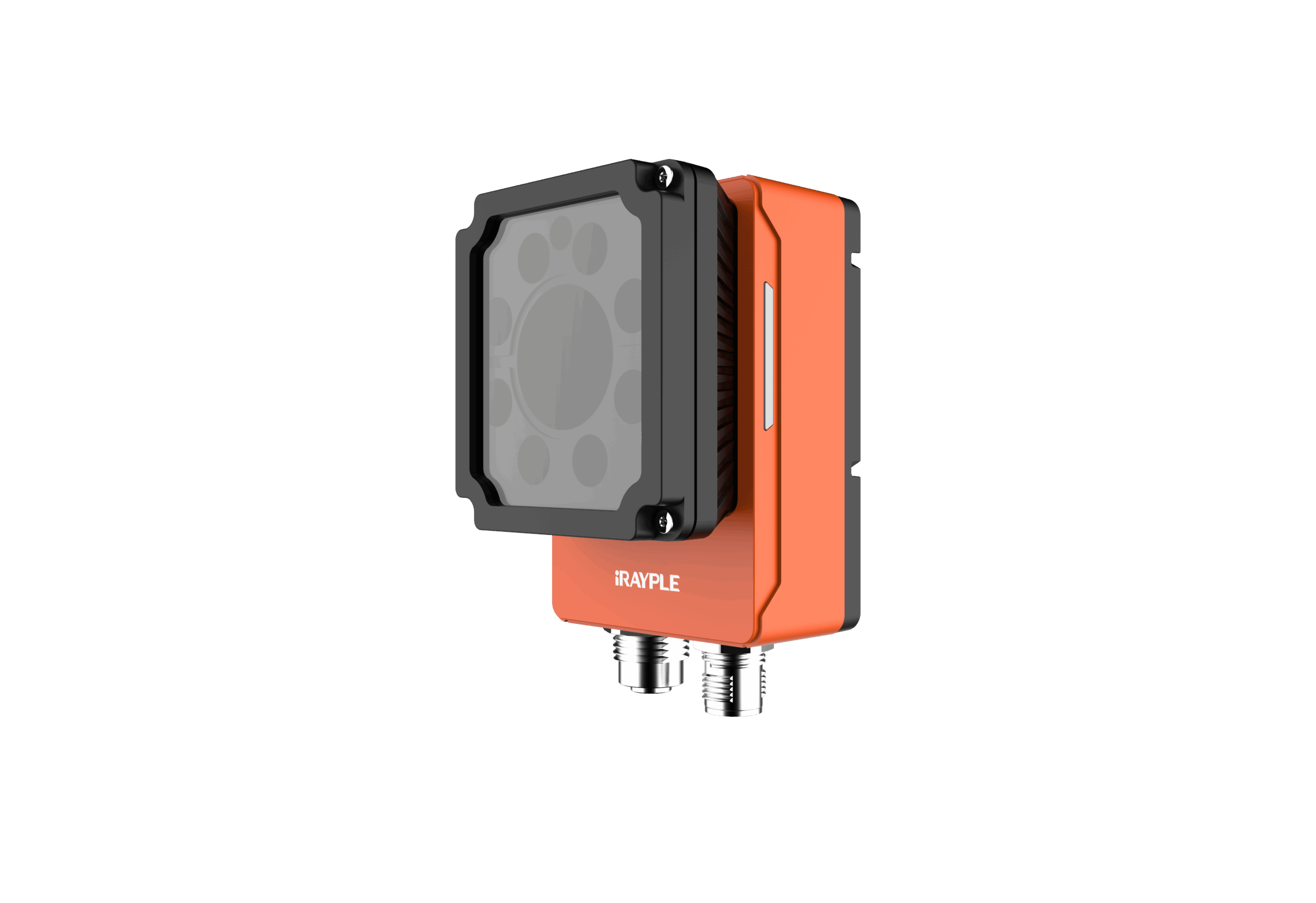

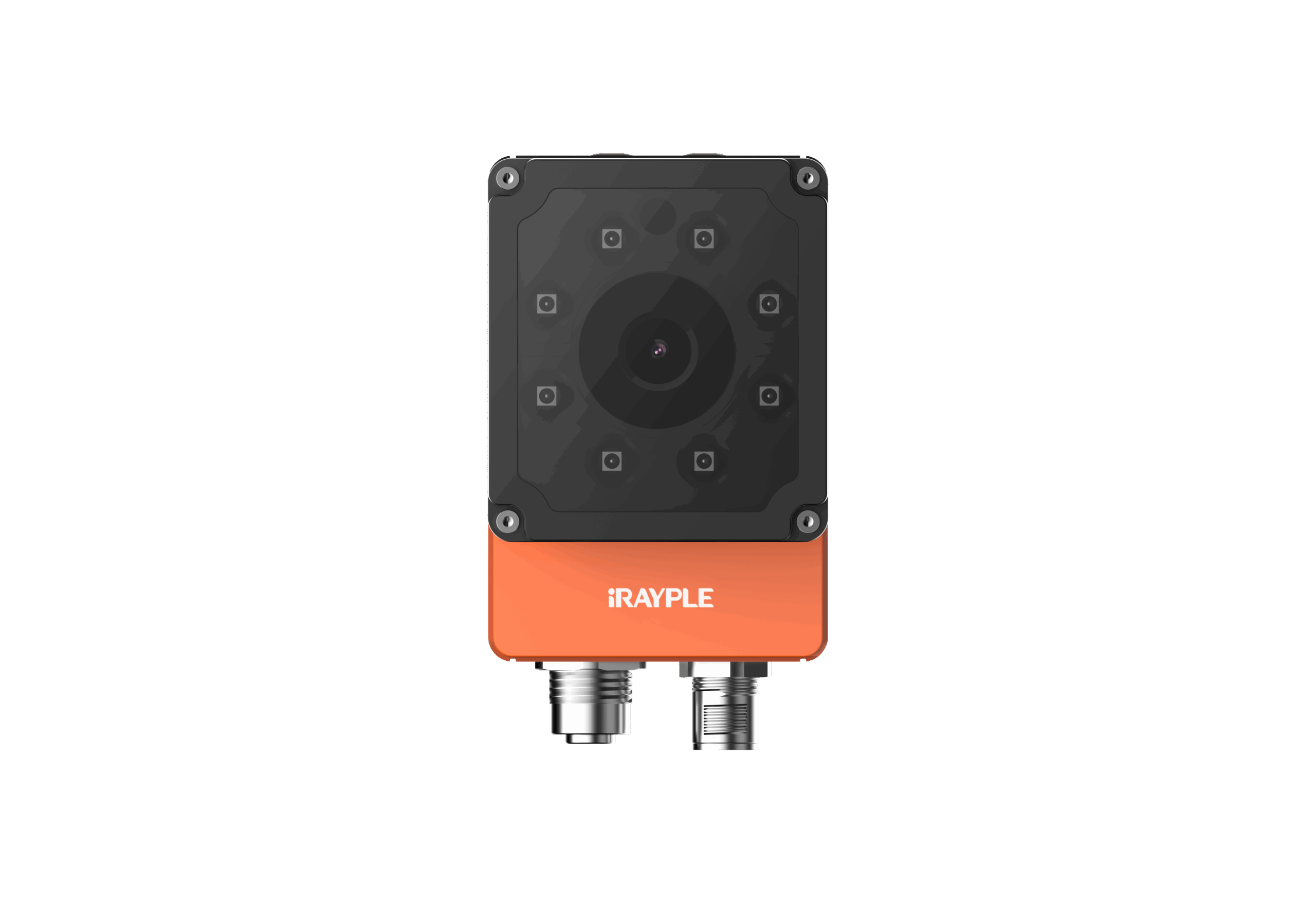

R5016MG-12M-RGG01E

Resolution	1440×1080
Max. Frame rate	60 fps
Shutter Mode	Global
Mono/Color	Mono
Lens Mount	M12, auto focus
Trigger Mode	Software trigger/External trigger/Free run modes
Certifications	CE?KC
Function	lD: Code 39/Code 93/Code128/CodaBar/EAN8/EAN13/UPCA/UPCE/ITF25/2of5?Industrial2of5?/standard25/GS1-128 etc. and 2D: Data Matrix/MQR/GS1 DM/GS1QR etc.; Quality Evaluation: ISO/IEC 29158(AIM-DPM), ISO/IEC 15415, ISO/IEC 15416?
Focal Length	12 mm
Working Distance	80-1500 mm
Field of View (FOV)	85×64 mm@WD200 mm
Max. Read Speed	90 codes/s
Max. Operating Speed	3 m/s
Min. Resolution	1D code 0.04 mm/ 2D code 0.06 mm
Light Source Type	Red, Polarized/Non-polarized
Connector	2 Industrial connectors support GigE and GPIO
Network Port	GigE
GPIO Interface	RS232, 2 Opto-isolated inputs and 3 Opto-isolated outputs
Communication Mode	RS232, Ethernet
Communication protocol	SDK?TCP Client?TCP Server?FTP?RS232?Profinet?Modbus?EtherNet/IP?MC(SLMP)?FINS/UDP?FINS/TCP
LED Indicator	Power,Ethernet,Status,Result
Power Supply	9~26VDC, 2A input, suitable for industrial environment
Power Consumption	<18 W(light included)
Product Dimensions	82 mmx55 mmx53 mm(not including connector)
Net Weight	<350 g
Protection	IP65
Casing Material	Aluminum alloy + Front cover
Operating Temperature	-20??+50?
Operating Humidity	20%?95%(no condensation)
Storage Temperature	-30??+70?

Description

Light-integrated design makes red/white/blue illumination optional, support control separately
Support different focal lengths, electrical auto focus and one-click auto training
GigE interface, IP65 protection level
Abundant IO interfaces such as Ethernet, RS232, GPIO, support multiple communication protocols
Support various code formats and evaluations of code quality
Built-in deep-learning algorithms and multi-parameters polling to ensure effects of complex applications

Connector	2 Industrial connectors support GigE and GPIO
Field of view	85×64 mm@WD200 mm
Gpio interface	RS232, 2 Opto-isolated inputs and 3 Opto-isolated outputs
Lens mount	M12, auto focus
Power consumption	<18 W(light included)
Power supply	9~26VDC, 2A input, suitable for industrial environment
Resolution	1440×1080
Storage temperature	-30℃~+70℃
Trigger mode	Software trigger/External trigger/Free run modes
Working distance	80-1500 mm
Mono-color	Mono
Max. frame rate	60 fps
Shutter mode	Global
Certifications	CE，KC
Function
Light source type	Red, Polarized/Non-polarized
Max. read speed	90 codes/s
Max. operating speed	3 m/s
Min. resolution	1D code 0.04 mm/ 2D code 0.06 mm
Network port	GigE
Communication mode	RS232, Ethernet
Communication protocol	SDK，TCP Client，TCP Server，FTP，RS232，Profinet、Modbus、EtherNet/IP、MC（SLMP）、FINS/UDP、FINS/TCP
Led indicator	Power,Ethernet,Status,Result
Protection	IP65
Casing material	Aluminum alloy + Front cover
Operating humidity	20%~95%(no condensation)
