MK5028M

MK5028M

Series MK-M Series
Model MK5028M
Focal Length 50 mm
Aperture F2.8 – 16
Image Sensor Size Ф11.4 mm(2/3″)
Focus Range 0.2 m to infinite
Optical Distortion 0.05%
TV Distortion -0.01%
Field of View 12.6°×10.1° ×7.6°(11 mm×8.5 mm×7.12 mm)
Relative Illumination 85% (F2.8); 97% (F4.0)
CRA（Chief Ray Angle) 5°
Spectral Range 436 nm~656 nm
Spectral Transmission T＞85%
Camera Mount C – Mount
Filter Thread M25.5×P0.5
Focus Control Manual
Iris Control Manual
Product Dimensions 58.1×Ф30 mm
Net Weight 86.5±5 g
Operating Temperature -20°C ~ +50°C
Add to Quote
Category: Tag: Brand:

Description

  • Support up to 2/3″ camera sensors
  • 5 models, focal length covering from 12mm to 50mm
  • Ultra high resolution, 10MP resolution in full view, matching up to 1.67?m pixel size?
  • Ultra low distortion?
  • Stable sharpness quality when temperature varies from -20?~50??

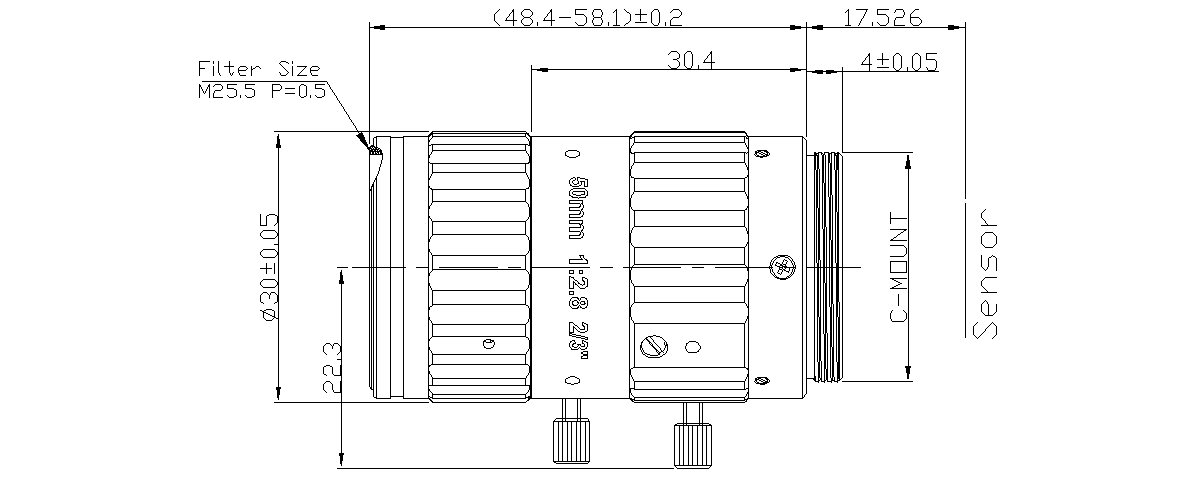

Dimensions

Downloads

Additional information

Field of view

12.6°x10.1° x7.6°(11 mmx8.5 mmx7.12 mm)
Focus control

Manual
Cra (chief ray angle)

5°
