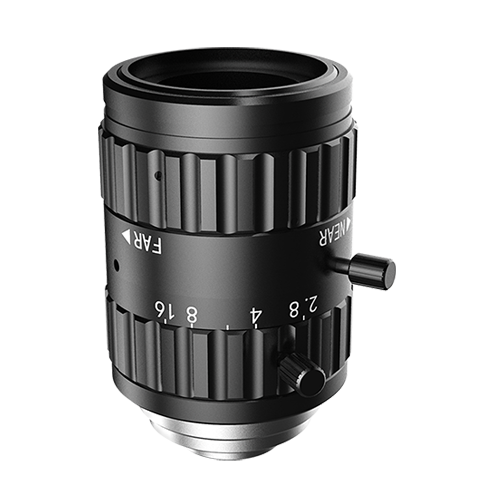

MK3528M

MK3528M

Series MK-M Series
Model MK3528M
Focal Length 35 mm
Aperture F2.8-F16
Image Sensor Size Ф11.4 mm(2/3″)
Focus Range 0.2 m to infinite
Optical Distortion -0.16%
TV Distortion 0.07%
Field of View 17.9°×14.3°×10.8°(11 mm×8.5 mm×7.12 mm)
Relative Illumination 73% (F2.8); 96% (F4.0)
CRA（Chief Ray Angle) 11.7°
Spectral Range 400 nm~700 nm
Spectral Transmission T＞85%
Camera Mount C-Mount
Filter Thread M25.5xP0.5
Focus Control Manual
Iris Control Manual
Product Dimensions 42.1 mm×Ф33 mm
Net Weight 99 g
Operating Temperature -20°C ~ +50°C
Add to Quote
Category: Tag: Brand:

Description

  • Support up to 2/3″ camera sensors
  • 5 models, focal length covering from 12mm to 50mm
  • Ultra high resolution, 10MP resolution in full view, matching up to 1.67?m pixel size?
  • Ultra low distortion?
  • Stable sharpness quality when temperature varies from -20?~50??

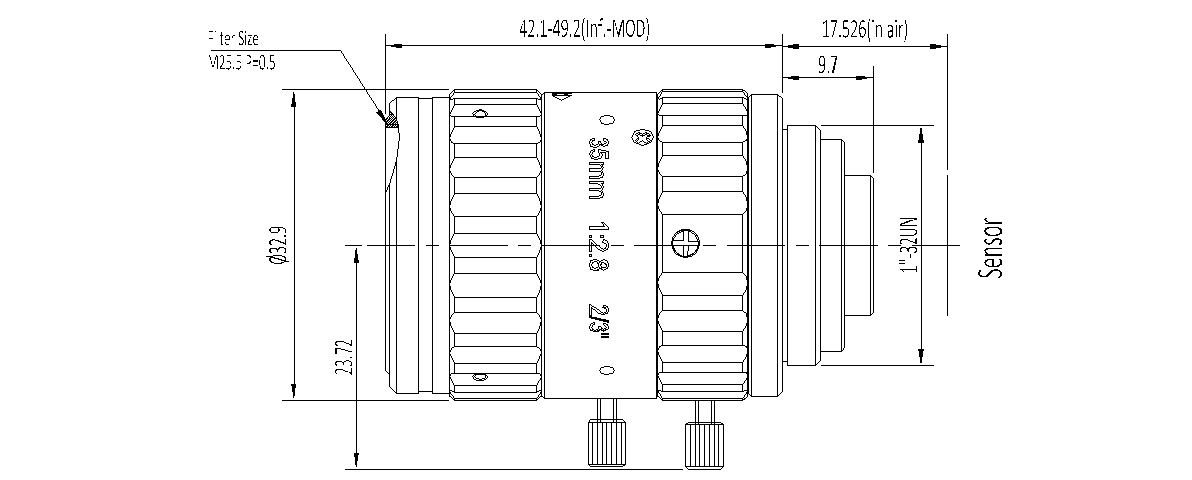

Dimensions

Downloads

Additional information

Field of view

17.9°x14.3°x10.8°(11 mmx8.5 mmx7.12 mm)
Focus control

Manual
Cra (chief ray angle)

11.7°
