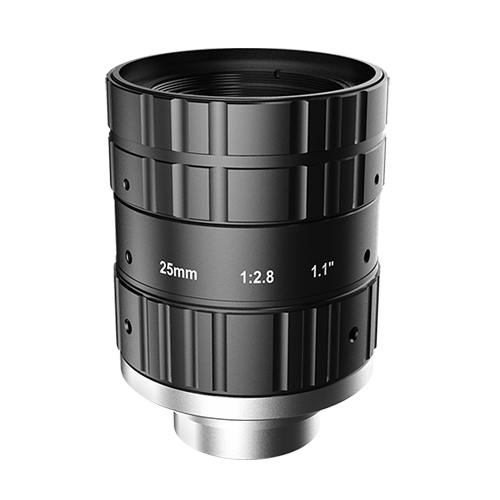

MH2528X

MH2528X

Series MH-X Series
Model MH2528X
Focal Length 25mm
Aperture F2.8 – F16
Image Sensor Size Ф17.6mm(1.1″)
Focus Range 0.15m to infinite
Optical Distortion -0.85%
TV Distortion -0.2%
Field of View 37.3°x30.4°x23° (17.6mmx14.08mmx10.56mm)
Relative Illumination 60% (F2.8); 81% (F4.0)
CRA（Chief Ray Angle) 11.43°
Spectral Range 436nm~656nm
Spectral Transmission T>85%
Camera Mount C Mount
Filter Thread M35.5xP0.5
Focus Control Manual
Iris Control Manual
Product Dimensions 51.94mmxФ38.6mm
Net Weight 133 g
Operating Temperature -10°C to +50°C
Add to Quote
Category: Tag: Brand:

Description

  • Support up to 1.1″ camera sensors
  • 5 models, focal length covering from 12mm to 50mm
  • High resolution for 12MP camera in full of view?consistent clarity at center and edge?
  • Low distorion?
  • Stable sharpness quality when temperature varies from -10?~50??

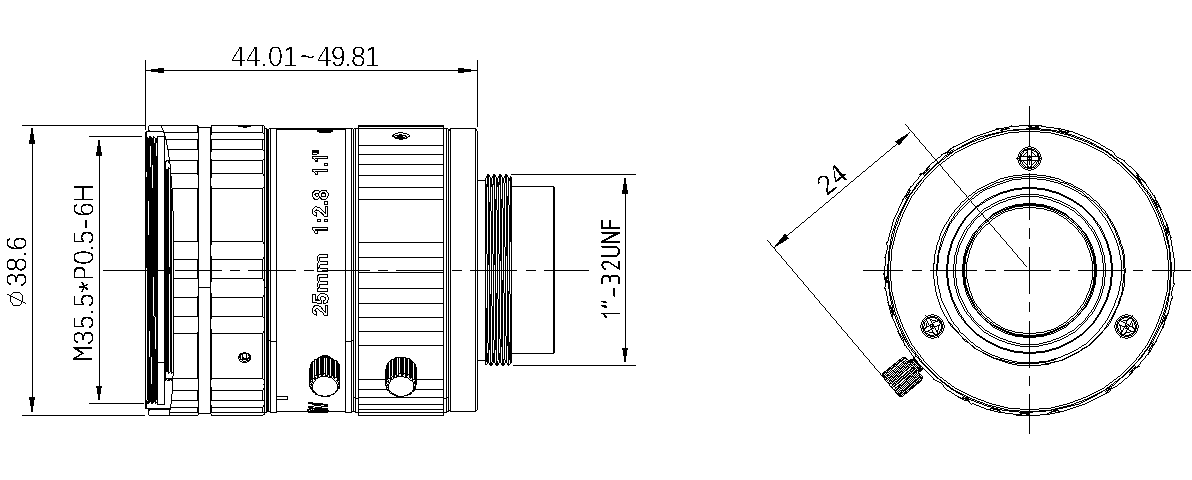

Dimensions

Downloads

Additional information

Field of view

37.3°x30.4°x23° (17.6mmx14.08mmx10.56mm)
Focus control

Manual
Cra (chief ray angle)

11.43°
