MH1228SP

MH1228SP

Series MH-SP Series

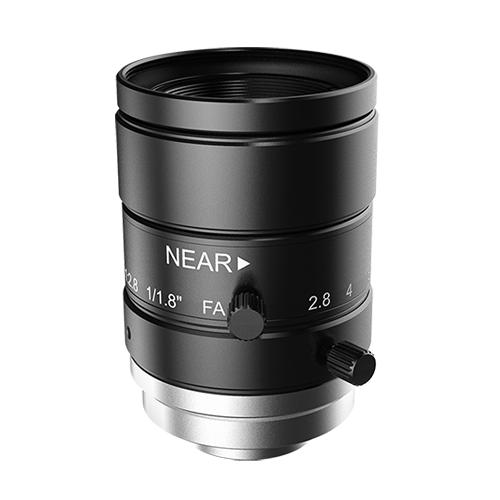

Model MH1228SP
Focal Length 12 mm
Aperture F2.8 – 16
Image Sensor Size Ф9.4 mm(1/1.8″)
Focus Range 0.1 m to infinite
Optical Distortion -0.4%
TV Distortion -0.04%
Field of View 41.2°×34.4°×23.4°(9 mm×7.4 mm×5.3 mm)
Relative Illumination 71% (F2.8); 82% (F4.0)
CRA（Chief Ray Angle) 10°
Spectral Range 436 nm～656 nm
Spectral Transmission T＞85%
Camera Mount C – Mount
Filter Thread M27×P0.5
Focus Control Manual
Iris Control Manual
Product Dimensions 35.36×Ф29 mm
Net Weight 54.22 g
Operating Temperature -10°C～+50°C
Add to Quote
Category: Tag: Brand:

Description

  • Support up to 1/1.8″ camera sensors
  • 7 models, focal length covering from 6mm to 50mm
  • High resolution for 3MP camera in full of view?high edge definition?
  • Design for close working distance?more suitable for industrial vision inspection scenarios?
  • Ultra low distorion?
  • Stable sharpness quality when temperature varies from -10?~50??

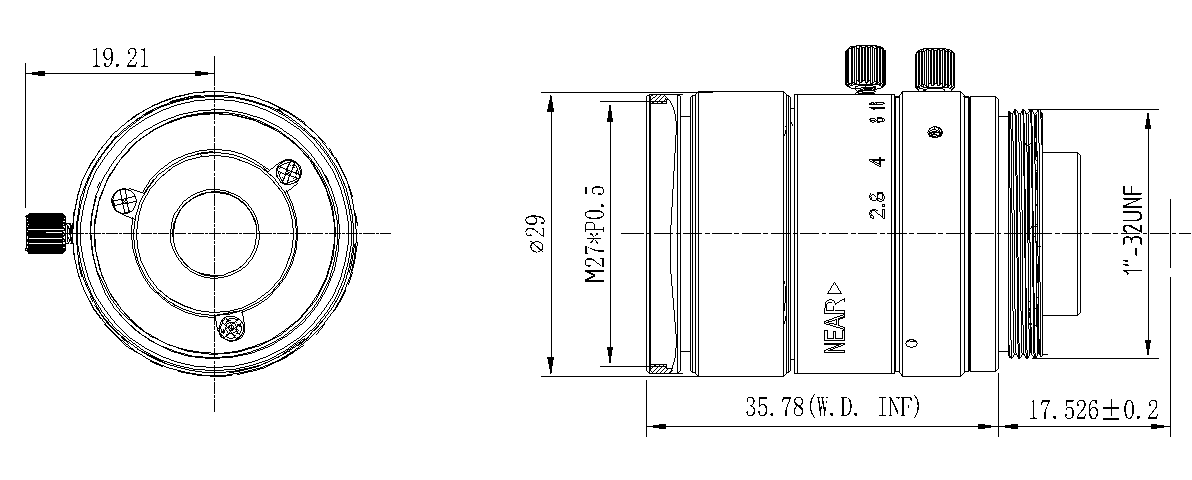

Dimensions

Downloads

Additional information

Field of view

41.2°x34.4°x23.4°(9 mmx7.4 mmx5.3 mm)
Focus control

Manual
Cra (chief ray angle)

10°
