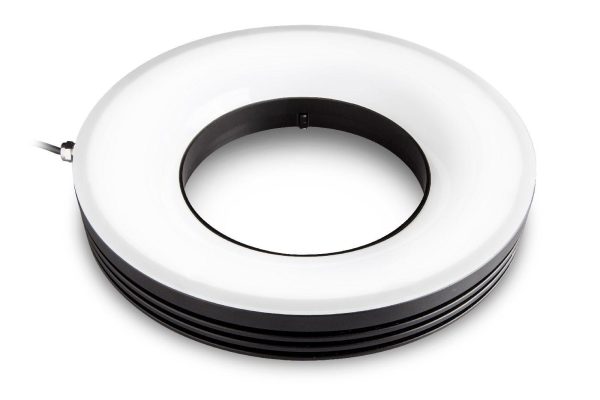

LTRN210RGBW

LTRN210RGBW

Specification Value
Illumination area outer diameter 195.6 (mm)
Illumination area inner diameter 119.5 (mm)
Emission angle 20 (deg)
Optimal working distance 45-65 (mm)
Number of LED rows 1
Light color, peak wavelength RGBW
Illuminance at minimum working distance TBA (lux)
Illuminance at maximum working distance TBA (lux)
Supply voltage 24 (V)
Current 840 (mA)
Power consumption 20.2 (W)
Estimated MTBF – (hours)
Max pulse voltage 24-48 (36 recomended) (V)
Max pulse current 1680 (mA)
Max duty-cycle 10 (%)
Max pulse duration 10 (ms)
Connector 4x Flying leads
Cable length 1000 (mm)
Outer diameter 210.0 (mm)
Inner diameter 116.0 (mm)
Height 39.6 (mm)
Mass 650 (g)
Operating temperature 0-45 (°C)
Operating relative humidity 20-85, non condensing (%)
Risk group according to CEI EN 62471:2010 Risk group 2
Add to Quote
Category: Tag: Brand:

Description

  1. ± 15%.
  2. Tolerance ± 2%.
  3. At 25°C.
  4. Constant voltage power supply.
  5. Constant current power supply.

Additional information

Cable length

1000 (mm)
Max duty cycle

10 (%)
Light color, peak wavelength

RGBW
Accessory developer

Opto
Lux at max wd

TBA (lux)
Connector

4x Flying leads
Supply voltage

24 (V)
Height

39.6 (mm)
Operating temperature

0-45 (°C)
Outer diameter

210.0 (mm)
Color

RGBW
Operating relative humidity

20-85, non condensing (%)
Risk group (cei 62471)

Risk group 2
Current

840 (mA)
Mass

650 (g)
Power consumption

20.2 (W)
Max pulse duration

10 (ms)
Estimated mtbf
Illumination area (outer)

195.6 (mm)
Illumination area (inner)

119.5 (mm)
Optimal working distance

45-65 (mm)
Number of led rows

1
Emission angle

20 (deg)
Max pulse voltage

24-48 (36 recomended) (V)
Inner diameter

116.0 (mm)
Lux at min wd

TBA (lux)
Max pulse current

1680 (mA)
Operation power source

840 (mA)
