Description
- ???46mm?????
- ???65MP????????????????
- ???????TV????0.1%?
- ????????-20?~50??????????

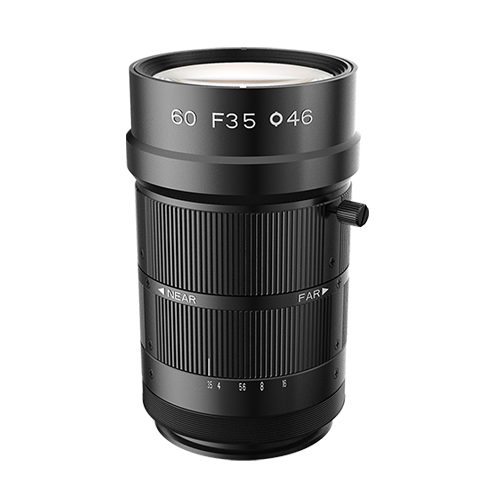

F46-6035-M58
| 系列 | MF-M系列 |
| 型号 | F46-6035-M58 |
| 镜头焦距 | 60mm |
| 光圈孔径 | F3.5 – F16 |
| 像面尺寸 | Ф46mm |
| 对焦范围 | 0.32m to infinite |
| 光学畸变 | -0.2% |
| TV畸变 | -0.08% |
| 视场角 | 33°x26.6°x20.2° (43.5mm x 36.2mm x 24.1mm) |
| 相对照度 | 73% (F4.3); 83% (F4.0) |
| 主光线入射角 | 8.3° |
| 光谱范围 | 436nm~656nm |
| 光谱透过率 | T>85% |
| 净重 | 503 g |
| 安装接口 | M58xP0.75 |
| 滤镜接口 | 无 |
| 对焦方式 | 手动调节 |
| 光圈控制 | 手动调节 |
| 产品尺寸 | 101.3xФ61mm |
| 工作温度 | -20°C ~ +50°C |
Additional information
| Aperture | F46mm |
|---|---|
| Camera mount | M58xP0.75 |
| Field of view | MF-M系列 |
| Filter thread | 无 |
| Focal length | F3.5 – F16 |
| Focus method | 手动调节 |
| Focus range | -0.20% |
| Image sensor size | 0.32m to infinite |
| Iris control | 手动调节 |
| Model | 60mm |
| Net weight | 503 g |
| Operating temperature | -20°C ~ +50°C |
| Optical distortion | -0.08% |
| Product dimensions | 101.3xF61mm |
| Relative illumination | 73% (F4.3); 83% (F4.0) |
| Series | F46-6035-M58 |
| Spectral range | 436nm~656nm |
| Spectral transmission | T>85% |
| Tv distortion | 33°x26.6°x20.2° (43.5mm x 36.2mm x 24.1mm) |
| Crachief ray angle) | 8.3° |
