| Series | Large Area Industrial lens |
| Model | F32-5035-M43 |
| Focal Length | 50 mm |
| Aperture | F3.5 – F11 |
| Image Sensor Size | Ф32 mm(2″) |
| Focus Range | 0.2 m to infinite |
| Optical Distortion | 0.15% |
| TV Distortion | -0.07% |
| Field of View | 34.5° × 28.4° × 22.1°(32° × 25.6° × 19.2° mm) |
| Relative Illumination | 58% (F3.5); 78% (F4.0) |
| CRA（Chief Ray Angle) | 10.3° |
| Spectral Range | 436 nm～656 nm |
| Spectral Transmission | T＞85% |
| Camera Mount | M43 × P0.5 |
| Filter Thread | M38 × P0.5 |
| Focus Control | Manual |
| Iris Control | Manual |

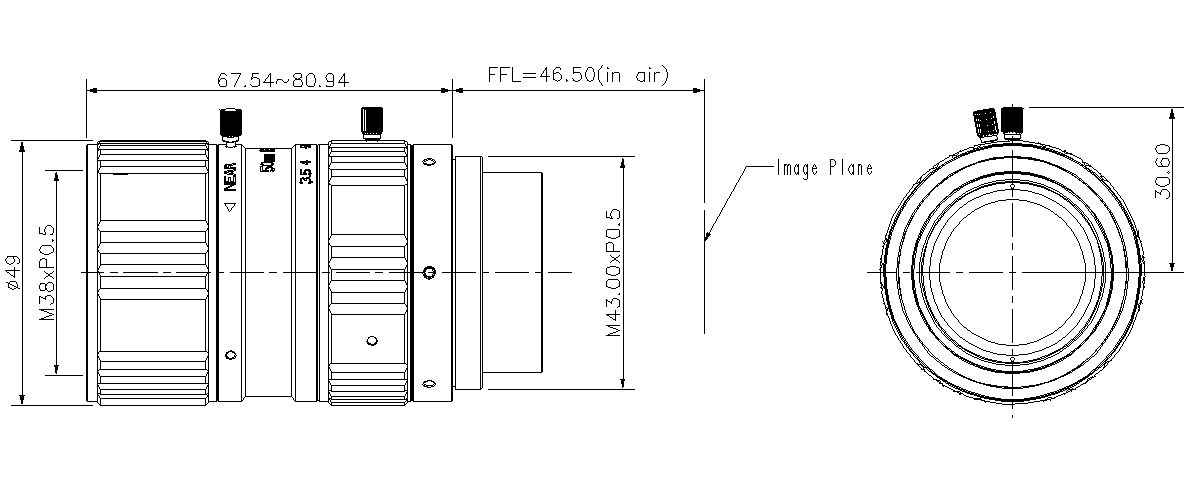

| Product Dimensions | 66.54 mm × Ф49 mm |
| Net Weight | 406 g |
| Operating Temperature | -20°C ～+50°C |
| Field of view | 34.5° x 28.4° x 22.1°(32° x 25.6° x 19.2° mm) |
|---|---|
| Focus control | Manual |
| Cra (chief ray angle) | 10.3° |
