A9-1228-6MP

A9-1228-6MP

Series A9-6MP Series

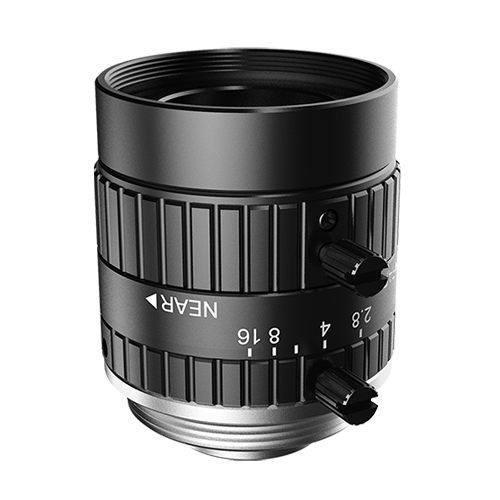

Model A9-1228-6MP
Focal Length 12 mm
Aperture F2.8 – 16
Image Sensor Size Ф9.4 mm(1/1.8″)
Focus Range 0.1 m to infinite
Optical Distortion 0.1%
TV Distortion 0.05%
Field of View 42.2°×34.96°×23.7° (9 mm×7.4 mm×4.9 mm)
Relative Illumination 78% (F2.8); 92% (F4.0)
CRA（Chief Ray Angle) 7.9°
Spectral Range 436 nm~656 nm
Spectral Transmission T＞85%
Camera Mount C – Mount
Filter Thread M27×P0.5
Focus Control Manual
Iris Control Manual
Product Dimensions 30×Ф30 mm
Net Weight 48±5 g
Operating Temperature -20°C ~ +50°C
Add to Quote
Category: Tag: Brand:

Description

  • Support up to 1/1.8″ camera sensors
  • 6 models, focal length covering from 8mm to 50mm
  • High resolution for 6MP camera in full of view?high edge definition?
  • Design for close working distance?more suitable for industrial vision inspection scenarios?
  • Ultra low distorion?
  • Stable sharpness quality when temperature varies from -20?~50??

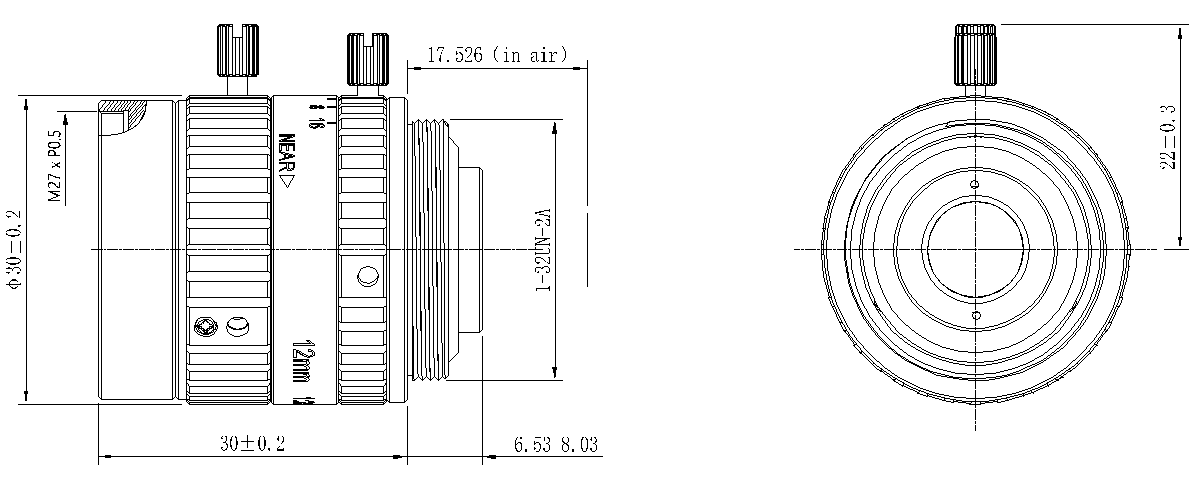

Dimensions

Downloads

Additional information

Focus control

Manual
Field of view

42.2°x34.96°x23.7° (9 mmx7.4 mmx4.9 mm)
Cra (chief ray angle)

7.9°
