A3600MG100E

Sensor IMX178
Image Sensor 1/1.8″CMOS
Shutter Rolling
Resolution 3072 × 2048
Frame Rate 18 fps
Bit Depth 12
Mono/Color Mono
Pixel Size 2.4 μm × 2.4 μm
Pixel 6.0 MP
S/N Ratio >38dB
Dynamic Range 73dB
Image Format Mono8/10/10Packed/12/12Packed
Binning Support
ROI Support
Gain 1~32
Gamma From 0 to 4, support LUT
Exposure Time 25μS~1S
Trigger Mode Software Trigger/Hardware Trigger/Free Run Mode
SPC Support
User Setting Support two sets of user-defined configurations
Image Buffer 128MB
Port GigE
GPIO Interface 1x 6 pin Hirose: 1x Opto-isolated input, 1x Opto-isolated output, 1 configurable input and output
Lens Mount C-mount
Power Supply DC 9V~24V power supply via Hirose interface
Power Consumption 12V≈3.4W
Product Dimensions 29mm×29mm×29mm
Net Weight 60 g
Storage Temperature -30℃~+80℃
Operating Temperature 0℃~+50℃
Add to Quote
Category: Tag: Brand:

Description

  • Gigabit Ethernet interface, providing 1Gbps bandwidth with a maximum transmission distance of 100m
  • 128MB on-board cache for data transmission or image resend
  • Support Software Trigger/Hardware Trigger/Free Run Mode
  • Support ISP functions including Sharpness/Denoising/Gamma/LUT/BlackLevel Correction/TargetBrightness/Contrast etc.
  • Color cameras support interpolation, white balance, color conversion matrix, chroma, saturation, etc.
  • Support multiple image data formats output/ROI/Mirror, etc.
  • Conform to GigE Vision V2.0 protocol and GenICam standard
  • DC 9V~24V wide voltage power supply
  • Conform to CE, RoHS

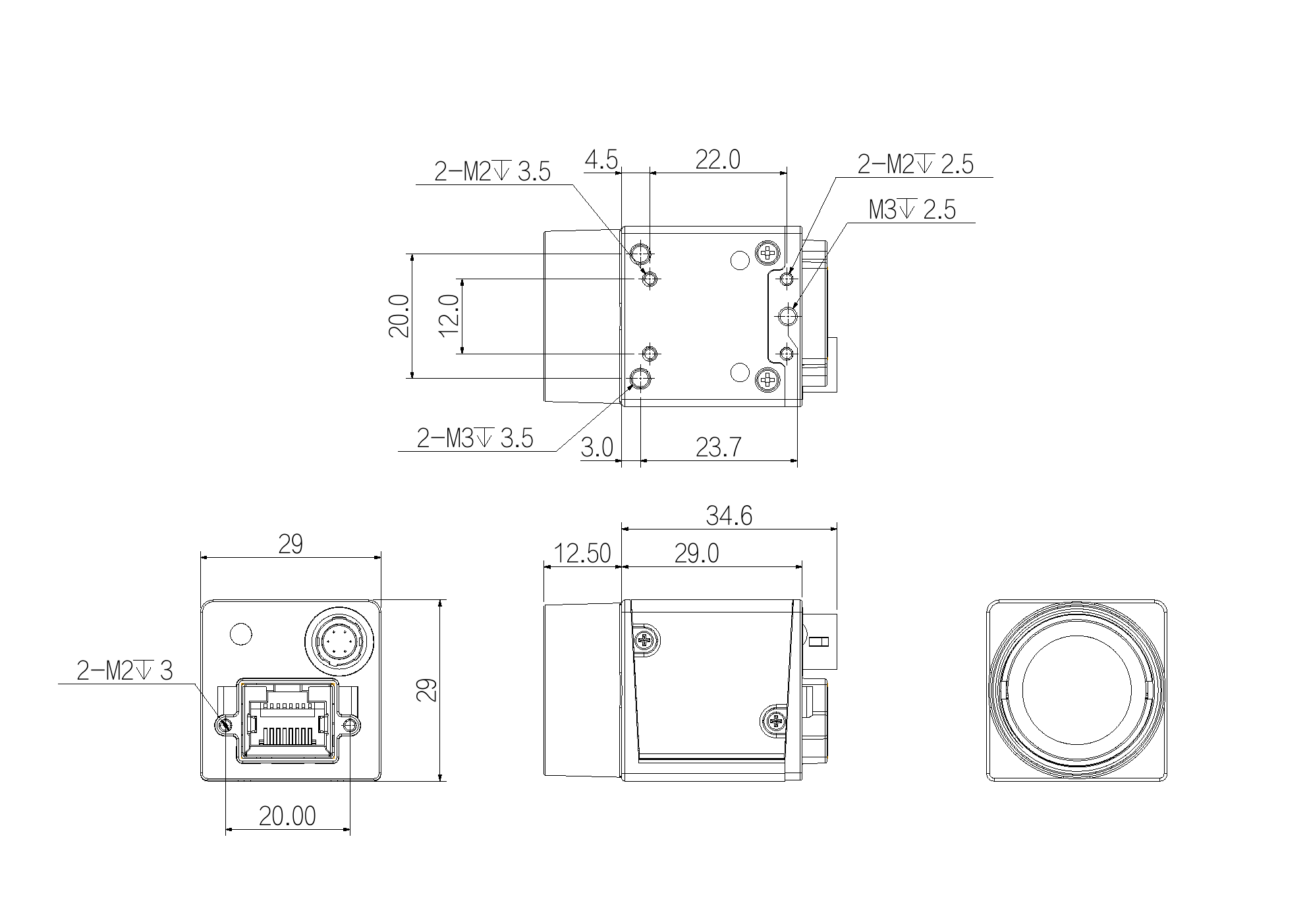

Dimensions

Downloads

GigE_(10GigE)_Area_Scan_Camera_user_s_Manual_V1.0.1.pdf

Additional information

Binning

Support
Bit depth

12
Dynamic range

73dB
Exposure time

25us~1S
Frame rate

18 fps
Gain

1~32
Gamma

From 0 to 4，support LUT
Gpio interface

1x 6 pin Hirose: 1x Opto-isolated input, 1x Opto-isolated output, 1 configurable input and output
Image buffer

128MB
Image format

Mono8/10/10Packed/12/12Packed
Image sensor

1/1.8"CMOS
Lens mount

C-mount
Pixel

6.0 MP
Pixel size

2.4 um x 2.4 um
Port

GigE
Power consumption

12V≈3.4W
Power supply

DC 9V~24V power supply via Hirose interface
Resolution

3072 x 2048
Roi

Support
Sensor

IMX178
Shutter

Rolling
Spc

Support
Storage temperature

-30℃~+80℃
Trigger mode

Software Trigger/Hardware Trigger/Free Run Mode
User setting

Support two sets of user-defined configurations
Mono-color

Mono
S/n ratio

>38dB
