A3504MG100E

Sensor	AR0521
Image Sensor	1/2.5″CMOS
Shutter	Rolling
Resolution	2592 × 1944
Frame Rate	23 fps
Bit Depth	12
Mono/Color	Mono
Pixel Size	2.2 μm × 2.2 μm
Pixel	5.0MP
S/N Ratio	40dB
Dynamic Range	74.3dB
Image Format	Mono8/10/10Packed/12/12Packed
Binning	Support
ROI	Support
Gain	1~32
Gamma	From 0 to 4, support LUT
Exposure Time	21.5μS~1S
Trigger Mode	Software Trigger/Hardware Trigger/Free Run Mode
SPC	Support
User Setting	Support two sets of user-defined configurations
Image Buffer	64MB
Port	GigE
GPIO Interface	1x 6 pin Hirose: 1x Opto-isolated input, 1x Opto-isolated output, 1 configurable input and output
Lens Mount	C-mount
Power Supply	DC 9V~24V power supply via Hirose interface
Power Consumption	12V≈2.8W

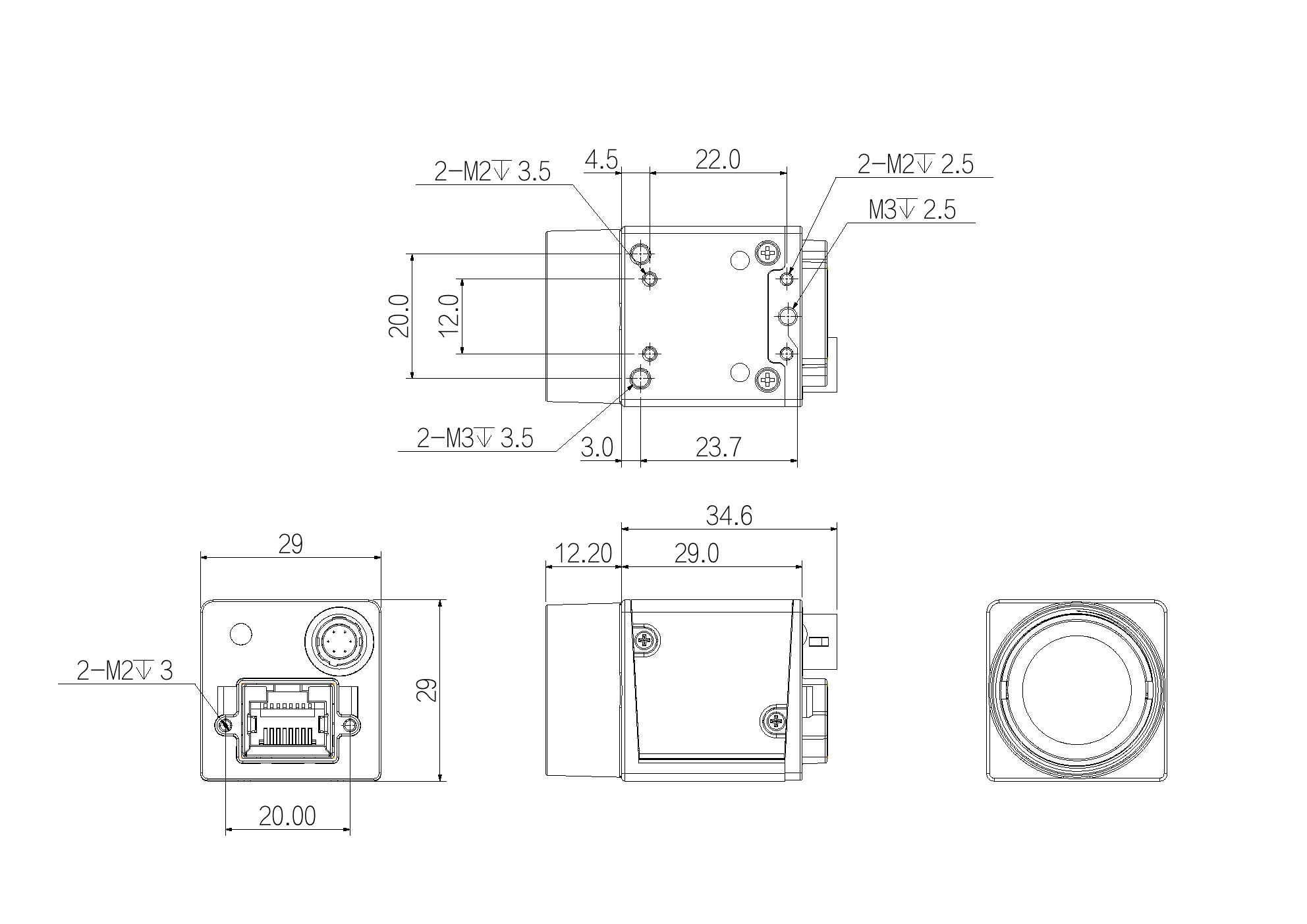

Product Dimensions	29mm×29mm×29mm
Net Weight	60 g
Storage Temperature	-30℃~+80℃
Operating Temperature	0℃~+50℃

Description

Gigabit Ethernet interface, providing 1Gbps bandwidth with a maximum transmission distance of 100m
128MB on-board cache for data transmission or image resend
Support Software Trigger/Hardware Trigger/Free Run Mode
Support ISP functions including Sharpness/Denoising/Gamma/LUT/BlackLevel Correction/TargetBrightness/Contrast etc.
Support multiple image data formats output/ROI/Binning/Mirror, etc.
Conform to GigE Vision V2.0 protocol and GenICam standard
DC 9V~24V wide voltage power supply
Conform to CE, RoHS

Binning	Support
Bit depth	12
Dynamic range	74.3dB
Exposure time	21.5us~1S
Frame rate	23 fps
Gain	1~32
Gamma	From 0 to 4，support LUT
Gpio interface	1x 6 pin Hirose: 1x Opto-isolated input, 1x Opto-isolated output, 1 configurable input and output
Image buffer	64MB
Image format	Mono8/10/10Packed/12/12Packed
Image sensor	1/2.5"CMOS
Lens mount	C-mount
Pixel	5.0MP
Pixel size	2.2 um x 2.2 um
Port	GigE
Power consumption	12V≈2.8W
Power supply	DC 9V~24V power supply via Hirose interface
Resolution	2592 x 1944
Roi	Support
Sensor	AR0521
Shutter	Rolling
Spc	Support
Storage temperature	-30℃~+80℃
Trigger mode	Software Trigger/Hardware Trigger/Free Run Mode
User setting	Support two sets of user-defined configurations
Mono-color	Mono
S/n ratio	40dB
