A3131MG100E

Sensor	PYTHON 1300
Image Sensor	1/2″CMOS
Shutter	Global
Resolution	1280 × 1024
Frame Rate	60 fps
Bit Depth	10
Mono/Color	Mono
Pixel Size	4.8 μm × 4.8 μm
Pixel	1.3MP
S/N Ratio	>38dB
Dynamic Range	60dB
Image Format	Mono8/10/10Packed
Binning	Support
Decimation	Support
ROI	Support
Gain	1~32
Gamma	From 0 to 4, support LUT
Exposure Time	1μS~1S
Trigger Mode	Software Trigger/Hardware Trigger/Free Run Mode
SPC	Support
FPN	Support
User Setting	Support two sets of user-defined configurations
Image Buffer	64MB
Port	GigE
GPIO Interface	1x 6 pin Hirose: 1x Opto-isolated input, 1x Opto-isolated output
Lens Mount	C-mount
Power Supply	DC 9V~24V power supply via Hirose interface
Power Consumption	12V≈2.8W

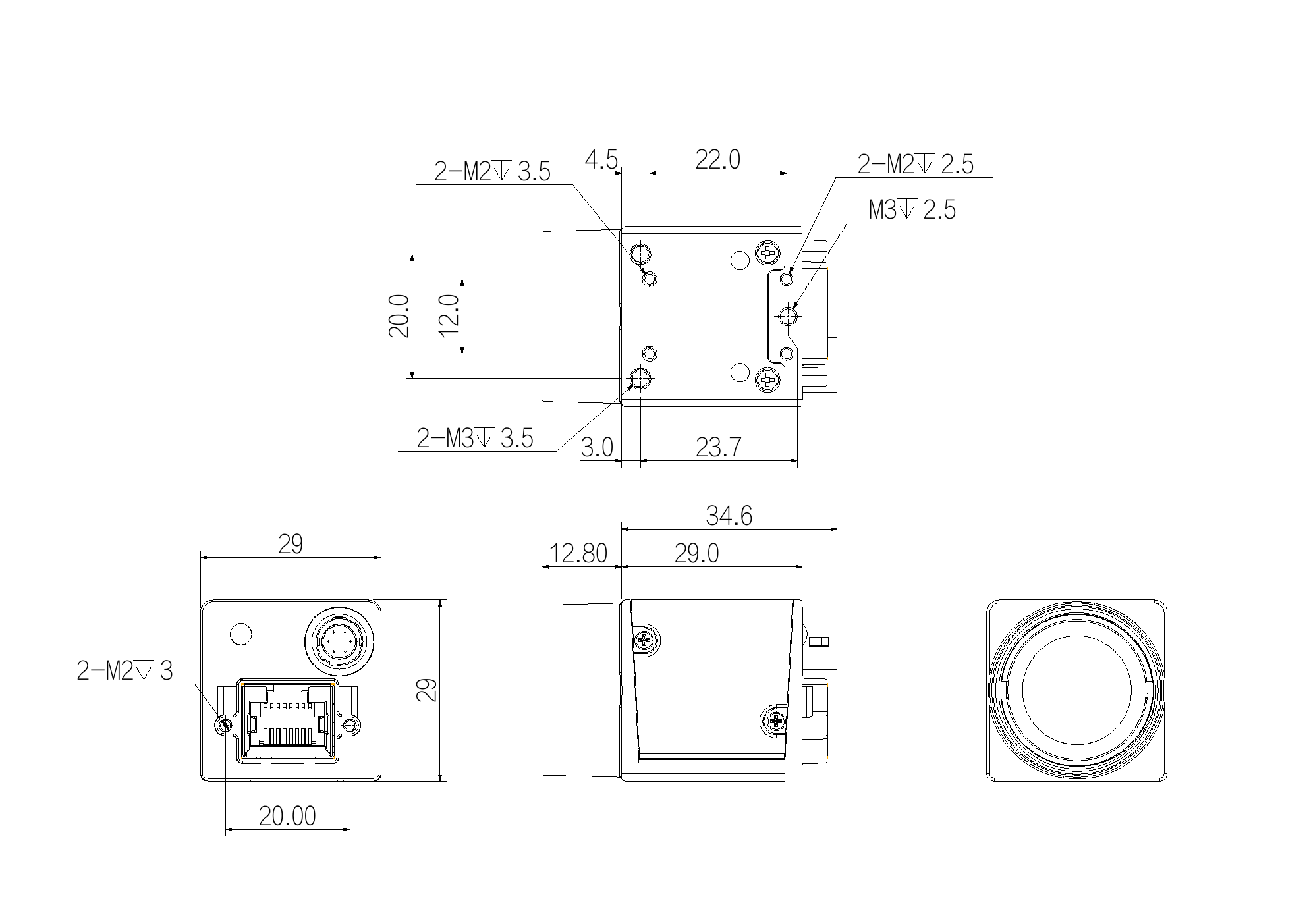

Product Dimensions	29mm×29mm×29mm
Net Weight	60 g
Storage Temperature	-30℃~+80℃
Operating Temperature	0℃~+50℃

Description

Gigabit Ethernet interface, providing 1Gbps bandwidth with a maximum transmission distance of 100m
128MB on-board cache for data transmission or image resend
Support Software Trigger/Hardware Trigger/Free Run Mode
Support ISP functions including Sharpness/Denoising/Gamma/LUT/BlackLevel Correction/TargetBrightness/Contrast etc.
Color cameras support interpolation, white balance, color conversion matrix, chroma, saturation, etc.
Support multiple image data formats output/ROI/Mirror, etc.
Conform to GigE Vision V2.0 protocol and GenICam standard
DC 9V~24V wide voltage power supply
Conform to CE, RoHS

Dynamic range	60dB
Exposure time	1us~1S
Frame rate	60 fps
Image buffer	64MB
Lens mount	C-mount
Pixel size	4.8 um x 4.8 um
Power consumption	12V≈2.8W
Power supply	DC 9V~24V power supply via Hirose interface
Resolution	1280 x 1024
Sensor	PYTHON 1300
Shutter	Global
Storage temperature	-30℃~+80℃
Image sensor	1/2"CMOS
Bit depth	10
Mono-color	Mono
Pixel	1.3MP
S/n ratio	>38dB
Image format	Mono8/10/10Packed
Binning	Support
Roi	Support
Gain	1~32
Gamma	From 0 to 4，support LUT
Trigger mode	Software Trigger/Hardware Trigger/Free Run Mode
Spc	Support
User setting	Support two sets of user-defined configurations
Port	GigE
Gpio interface	1x 6 pin Hirose: 1x Opto-isolated input, 1x Opto-isolated output
Fpn	Support
Decimation	Support
